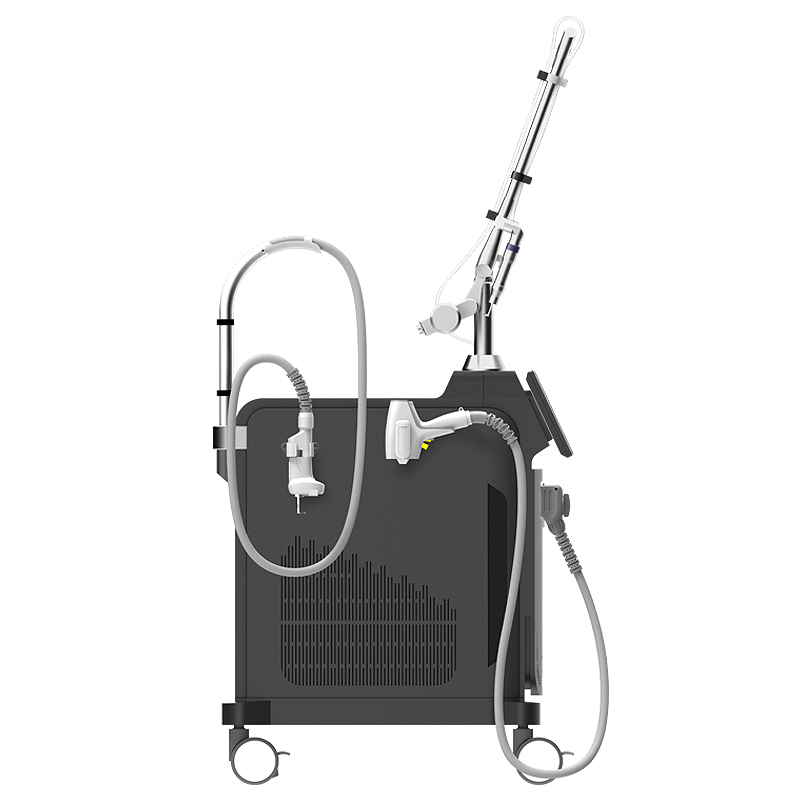

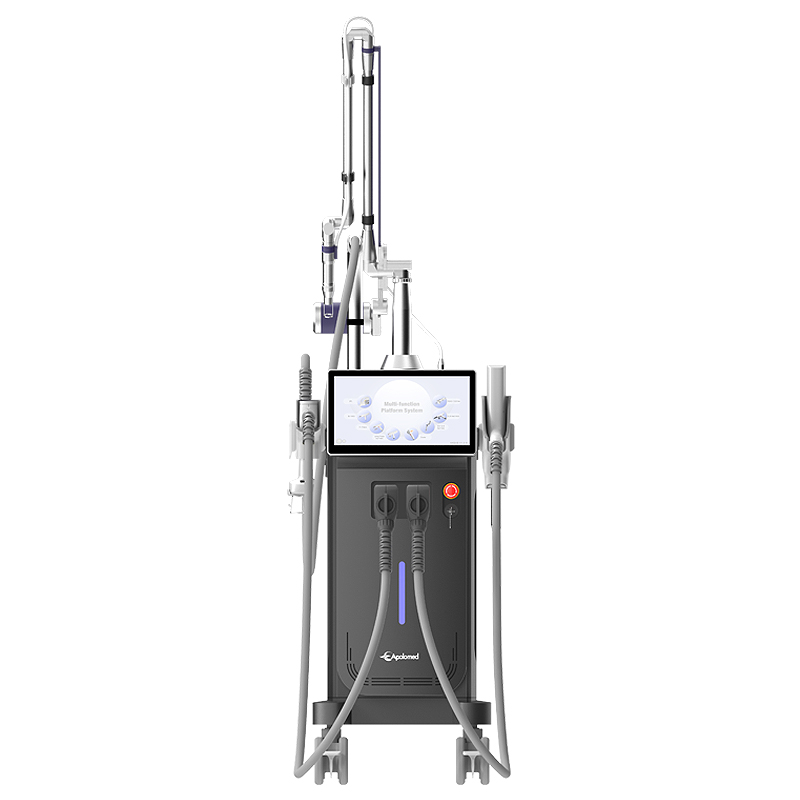

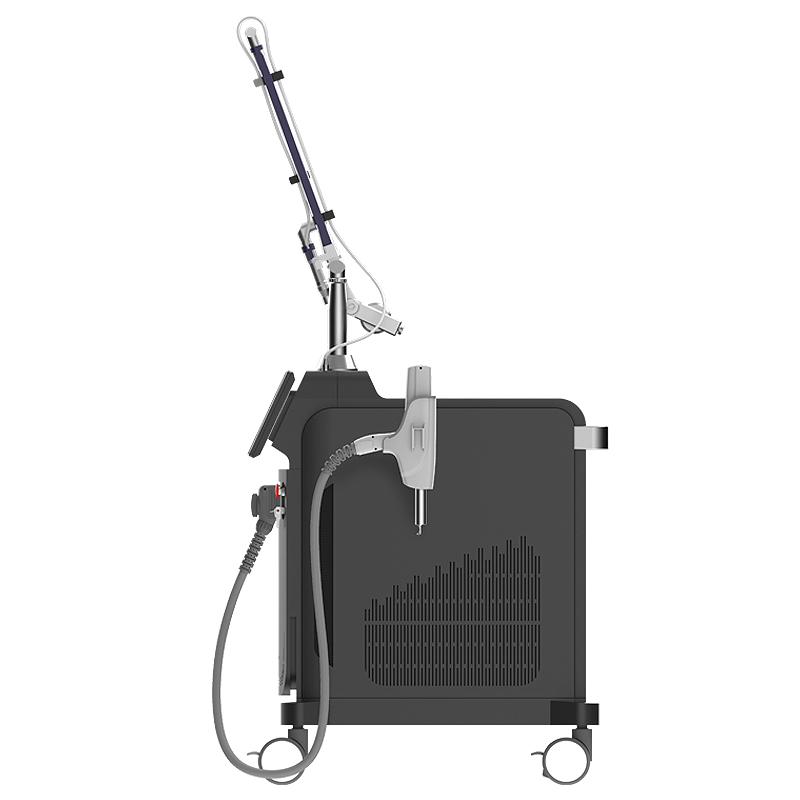

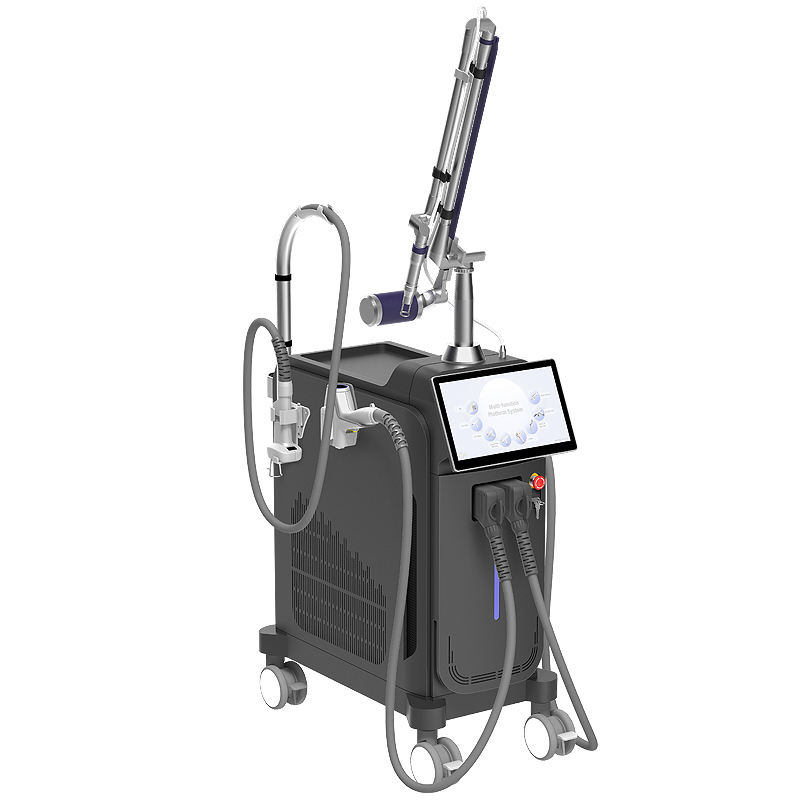

8-in-1 Platform Series, CE Medical

1064nm Long Pulse Nd:YAG Laser

2940nm Er:YAG Fractional Laser (Microbeam)

1540nm Er:Glass Fractional Laser (Microbeam)






8-in-1 Platform Series, CE Medical factory

1064/532nm Q-Switched Nd:YAG Laser (Pigmented Lesions)

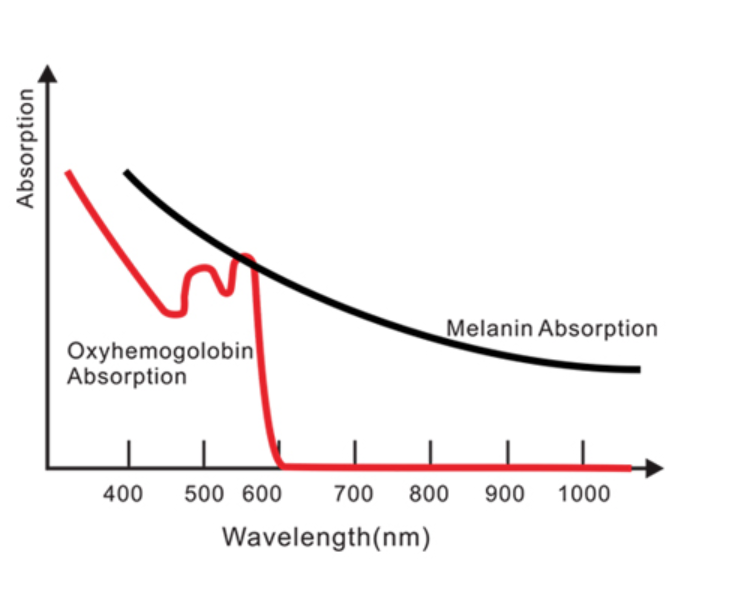

The special wavelengths of the Q-switched Nd:YAG laser can penetrate the skin based on the principle of “selective photothermolysis.” The instrument uses laser energy to break chromophores into pieces which can be naturally absorbed by the body, in order to achieve the purpose of freckle removal. The 1064nm wavelength shatters and removes black and blue pigments, while the 532nm wavelength targets red, pink, purple, and brown pigments in tattoos or other pigmented lesions without damaging normal tissue. Applications include tattoo removal, pigmented epidermal and dermal lesions, and vascular lesion removal.


1540nm Er:Glass Fractional Laser (Non-ablative)

8-in-1 Platform Series, CE Medical supplier8-in-1 Platform Series, CE Medical factory

Application


1550/1927nm Fiber Laser

Skin rejuvenation, Skin resurfacing, Wrinkle reduction, Skin toning and tightening, Stretch mark improvement, Acne scar correction, Stimulated hair growth.

1064/532nm EO Q-S Nd:YAG Laser (Microbeam)
Precise ablation of skin tissue, stimulate collagen regeneration and skin resurfacing.
Microlens tip: 7x7pixel, 10x10 pixel, Collimating lens, Array lens.
Long pulse lens.

1064nm Long Pulse Nd:YAG Laser
Permanent Hair Removal for all skin types, leg Veins and telangiectasi, Vascular lesion, wrinkle Removal

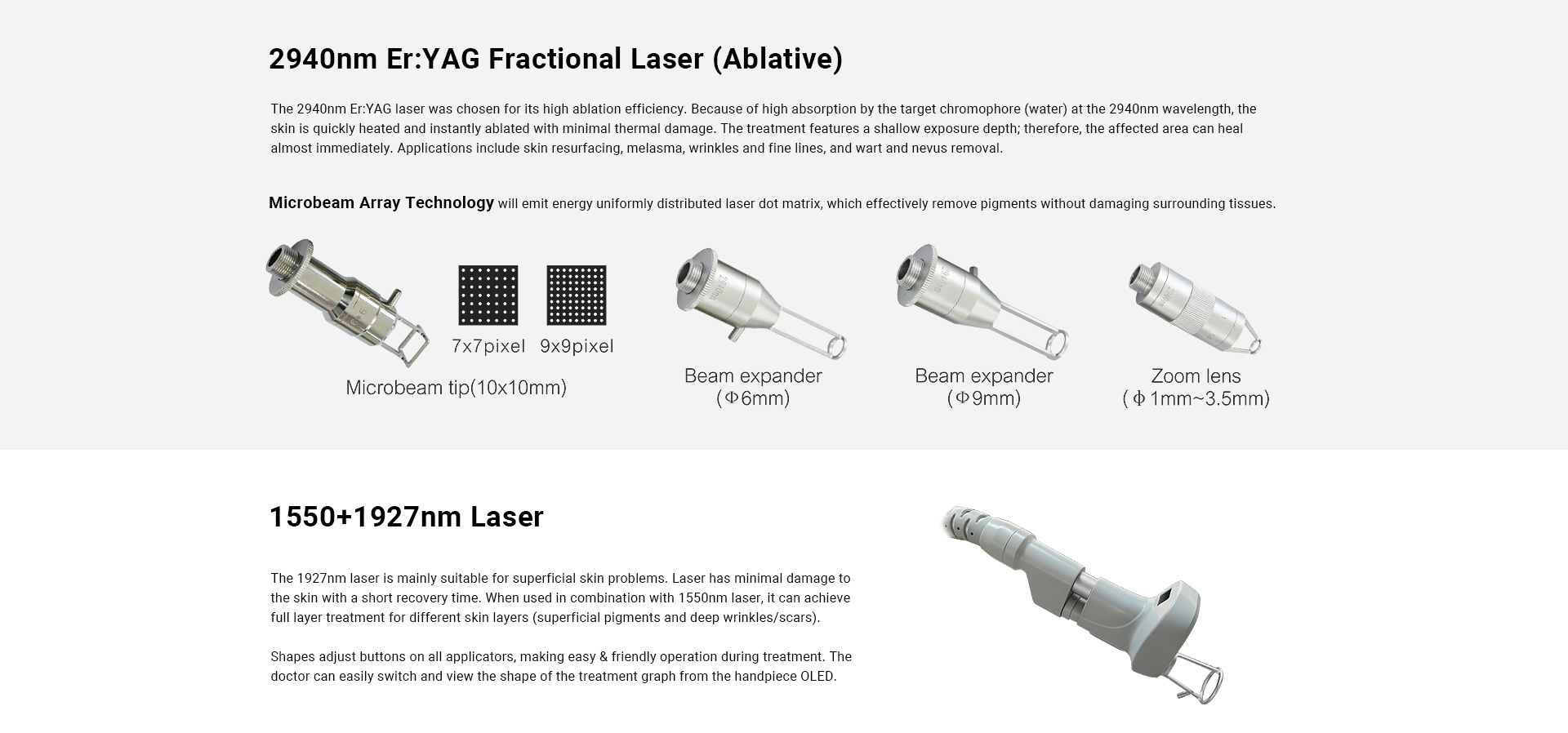

2940nm Er:YAG Fractional Laser (Microbeam)
Precise ablation of skin tissue, stimulate collagen regeneration and skin resurfacing.
Microlens tip: 7x7pixel, 9x9 pixel, Beam expander tip: Φ6mm, Φ9mm. Zoom lens tip:Φ1~3.5mm

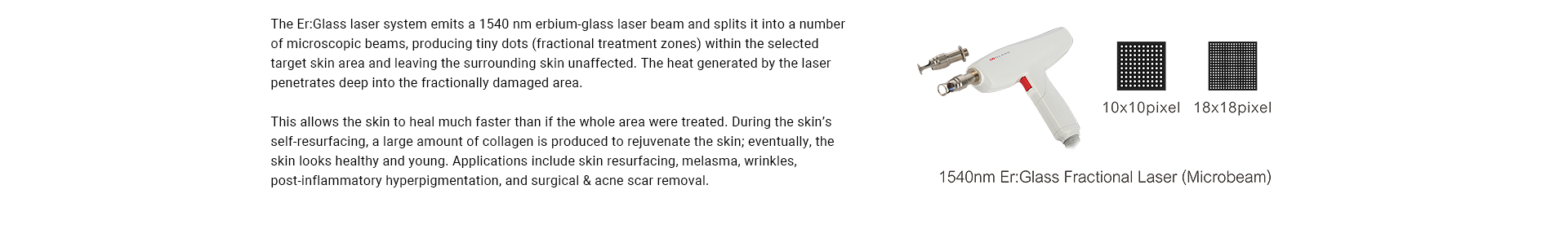

1540nm Er:Glass Fractional Laser (Microbeam)
Penetrates the dermis to stimulate collagen regeneration, achieve skin lifting, wrinkle removing and rejuvenating.
Microlens tip: 10x10 pixel, 18x18 pixel

1064/532nm Q-Switched Nd:YAG Laser
For unwanted tattoos, pigmented lesions (brown spots, age spots, etc.), vascular lesions, spider veins, toenail fungus, non-ablative skin rejuvenation(carbon peeling)

Diode laser
Permanent hair removal, Whole body and facial skin rejuvenation. Laser output: 1600W. Spot size: 12x20mm, 12x14mm/12x30mm

IPL
Skin care and rejuvenation, permanent hair removal, vascular treatment, dispel epidermal pigmentation, spots and freckles, acne removal, skin lifting and firming.

8-in-1 Platform Series, CE Medical factory

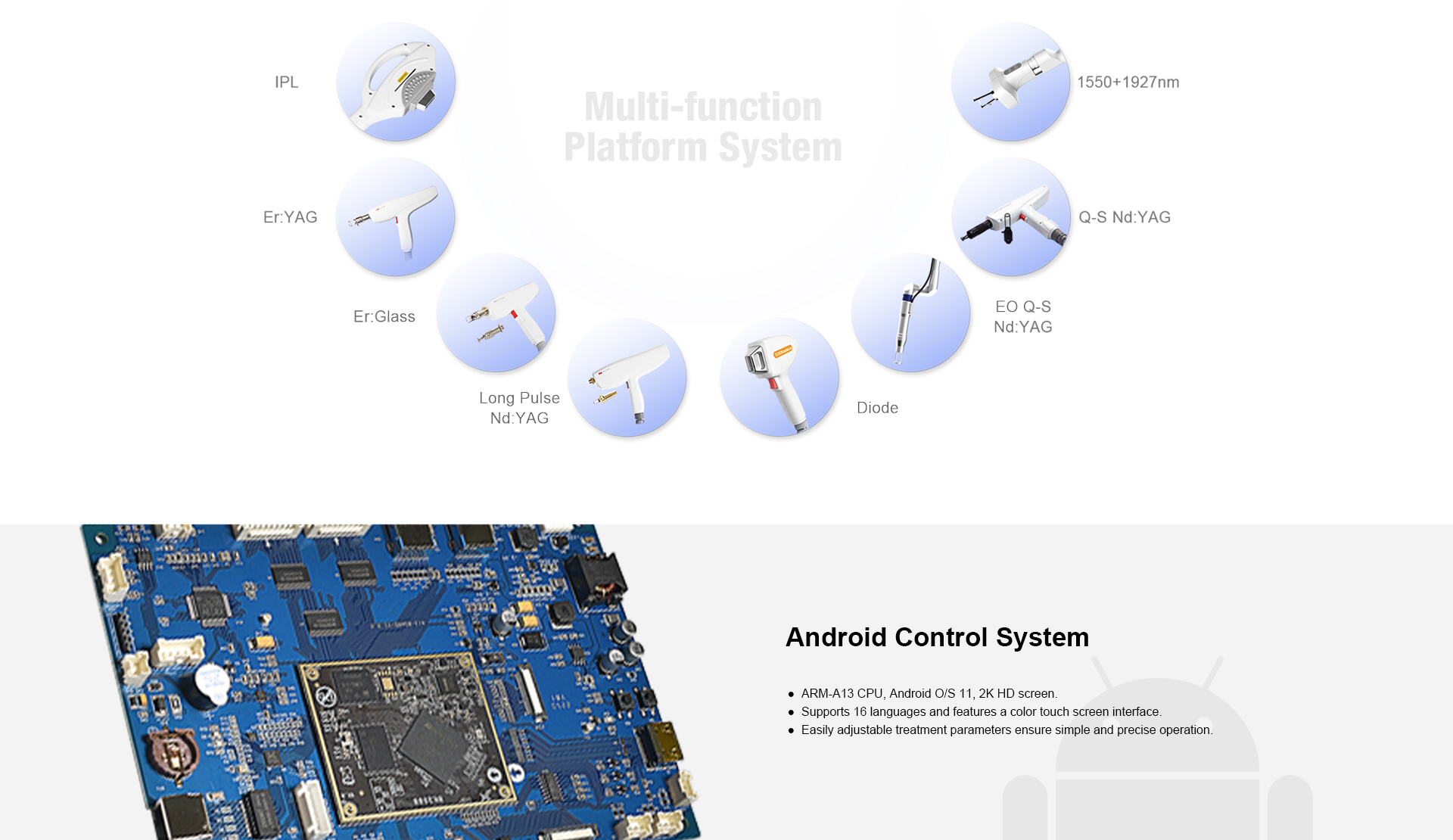

Multi-function light-based device


A simple and affordable approach to a wide variety of cosmetic and aesthetic procedures, with fewer risks and superior outcomes. The versatile platform provides a wide range of applications without investing in multiple laser systems. With the Apolomed platform, different technologies can be purchased and incorporated at different times, offering versatility and convenience to customers
.

8-in-1 Platform Series, CE Medical supplier




Specifications

Handpiece 1064/532nm EO Q-Switch Nd: YAG Laser, 585/650nm (optional)
Operate mode Q-switched mode, SPT mode
Beam profile Flat-top mode
Pulse width ≤6ns (Q-switched mode), 300 μs (SPT mode)
Pulse energy Q-switched (1064nm) Q-switched (532nm) SPT mode (1064nm)
Max. 1200mJ Max. 500mJ Max. 1400mJ
Repetition rate Max. 10 Hz
Spot size 2~10mm
Energy calibration External & self-restoration
Handpiece 1064/532nm Q-Switch Nd:YAG laser
Max. Energy 2400mJ (1064nm), 1200mJ (532nm)
Pulse width <10ns (single pulse)
Spot size 1-5mm
Repetition rate 1~10Hz
Power 1000W
Handpiece 1550/1927nm Fiber Laser
Laser power 15W+15W
Laser output 1~120mJ/dot (1550nm) 1~100mJ/dot (1927nm)
Pulse width 1~20ms (1550nm) 0.4~10ms (1927nm)
Density 9~225 PPA/cm² (13 level)
Scan area Max. 20×20mm
Operate mode Array, Random
Handpiece 2940nm Er: YAG fractional ablative laser (Microbeam)
Spot size 10x10 mm Φ6mm, Φ9mm Φ1~3.5mm
Energy 12~40mJ/microbeam (7x7 pixel)
6~24mJ/microbeam (9x9 pixel)
500~2000mJ
(Beam expander)
500~2000mJ
(Zoom lens)
Pulse width 200μs, 300μs, 500μs, 1ms, 2ms
Handpiece 1540nm Er:Glass fractional laser (Microbeam)
Energy 30~70mJ/microbeam (10x10 pixel), 5~25mJ/microbeam (18x18 pixel)
Pulse Width 10ms, 15ms
Handpiece 1064nm Long Pulse Nd:YAG Laser
Energy density 10~110J/cm² (Φ9mm), 60~260J/cm² (Φ6mm), 150~500J/cm² (2.2*5mm)
Pulse width 10~40ms
Repetition rate 0.5~1Hz
Handpiece Diode laser (810+755+1064nm)
Laser output 1600W
Spot size 12×14mm, 12×30mm, Φ6mm
Energy density 1~72J/cm²
Pulse width 10~200ms
Repetition rate 1~15Hz
