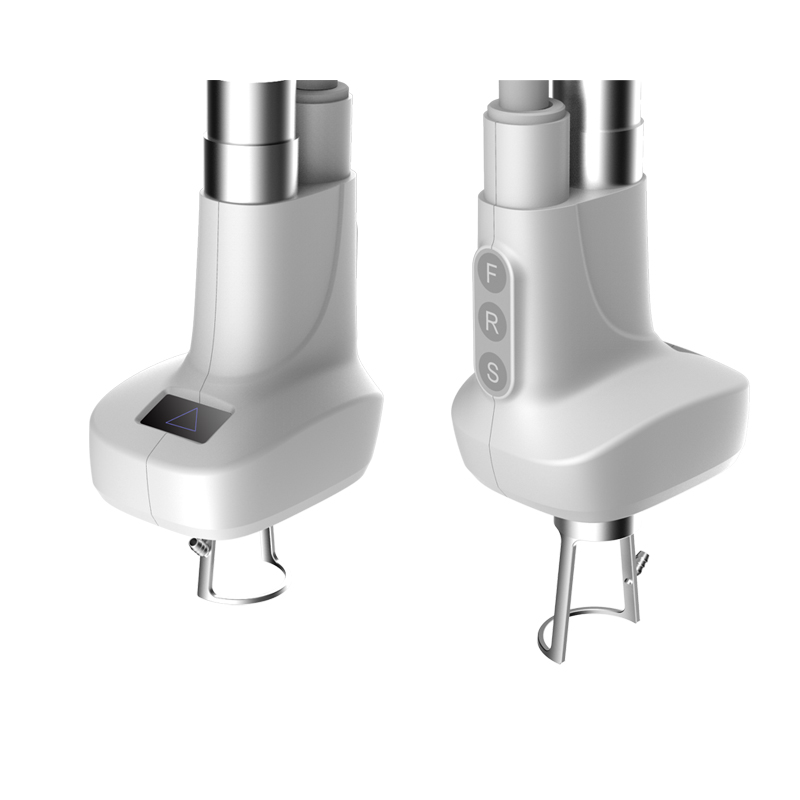

Shapes adjustment buttons allow quick, intuitive operation during treatment..
The doctor can easily switch and view the shape of the treatment graph from the handpiece OLED.

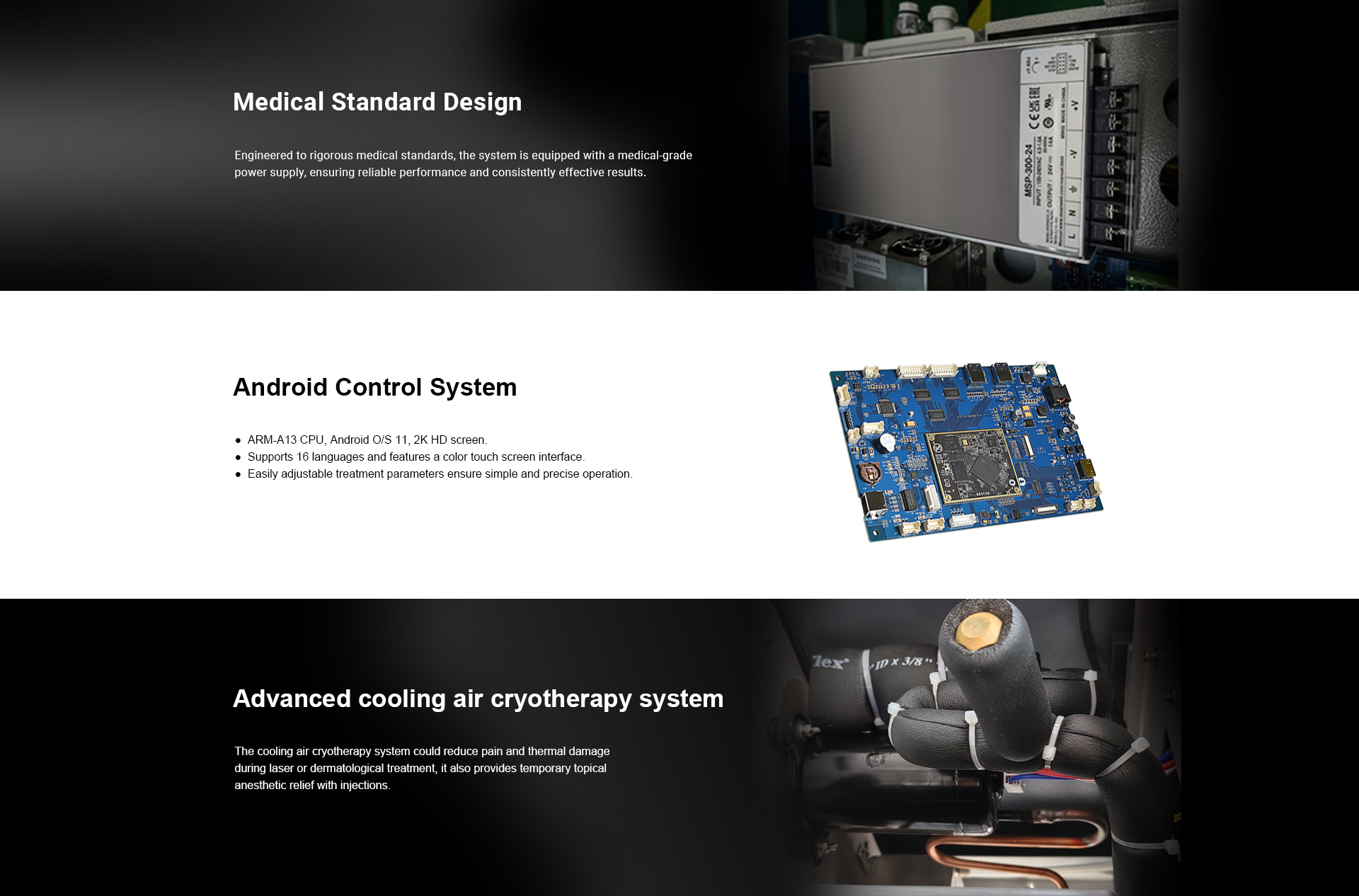

Advanced cooling air cryotherapy system (option)


The 1927nm thulium fiber laser focuses on the skin’s surface, brightening and refreshing the complexion by targeting pigmentation such as sunspots, melasma, and acne marks. Often nicknamed the “BB Laser” for its radiant results, it also creates tiny micro‑channels that enhance the absorption of serums and skincare products, amplifying post‑treatment benefits.
Together, these two wavelengths deliver a powerful combination of deep renewal and surface radiance, offering patients noticeable improvements in tone, texture, and overall skin health.
The 1927nm laser is mainly suitable for superficial skin problems. Laser has minimal damage to the skin and a short recovery time. When used in combination with 1550nm laser, it can achieve full layer treatment for different skin layers (superficial pigments and deep wrinkles/scars).

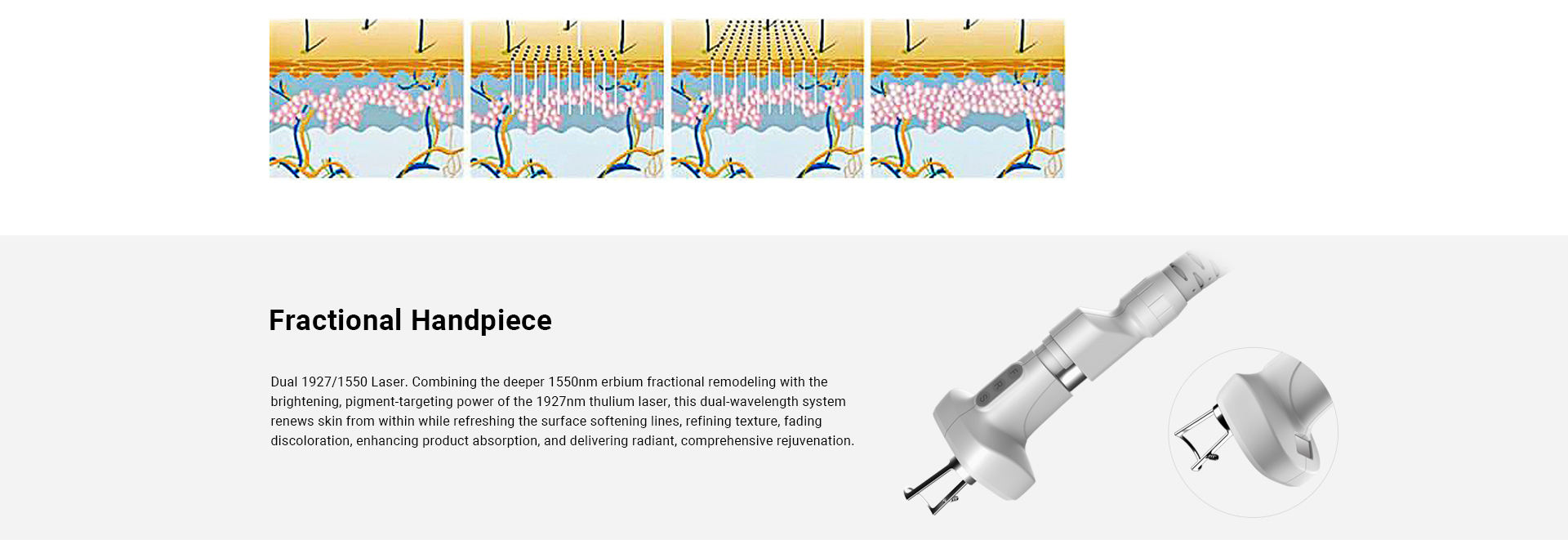

The 1550nm fractional laser works deep within the skin to smooth, refine, and renew from the inside out. By stimulating fresh collagen and remodeling damaged tissue, it helps soften fine lines, reduce pores, improve texture, and visibly diminish acne and surgical scars for lasting rejuvenation.

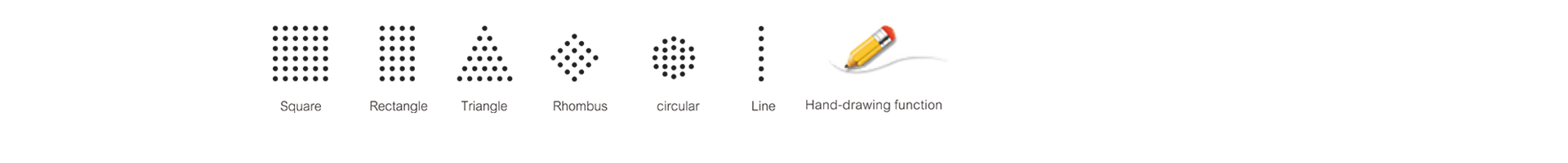

Multiple scanning patterns can be selected according to the treatment area and tissue. Choosing accurate energy and position location for different treatment tissues helps to effectively achieve skin resurfacing.
The unique hand‑drawing function can provide you with all kinds of graphics you want, which can be better used for some special treatment areas, especially the corners of the eyes, both ears, and so on.


| ● Skin rejuvenation | ● Stretch mark improvement |
| ● Skin resurfacing | ● Acne scar correction |
| ● Wrinkle reduction | ● Hair growth stimulation |
| ● Skin toning and tightening |
| Wavelength | 1550+1927nm | 1927nm | |
| Laser power | 15+15W | 15W | |
| Laser output |
1~120mJ/dot (1550nm) |
1~100mJ/dot (1927nm) |
1~100mJ/dot (1927nm) |
| Pulse width |
1~20ms (1550nm) |
0.4~10ms (1927nm) |
0.4~10ms (1927nm) |
| Density | 9~225 PPA/cm² (13 level) | ||
| Scan area | Max. 20*20mm | ||
| Operate mode | Array, Random | ||
| Operate interface | 15.6" True color touch screen | ||
| Cooling system | Advanced air cooling system * | ||
| Power supply | AC 100~240V, 50/60Hz | ||
| Dimension | 44*40*36cm (LWH) | ||
| Weight | 232: 27.5Kgs 232: 64.5Kgs * | ||
* Optional: Air cooling system
Cooling Temperature: Minimum –25 °C
Therapy Airflow: 5 adjustable levels
Power Output: 700 W
Function Modes: Temperature Control, Refrigeration, Defrosting
Treatment Tube Length: 2.5 m
User Interface: 7” true‑color touchscreen
Power Supply: 100–240 V
Dimensions: 48 × 48 × 80 cm (L × W × H)
Weight: 26 kg
