Medical Standard Design

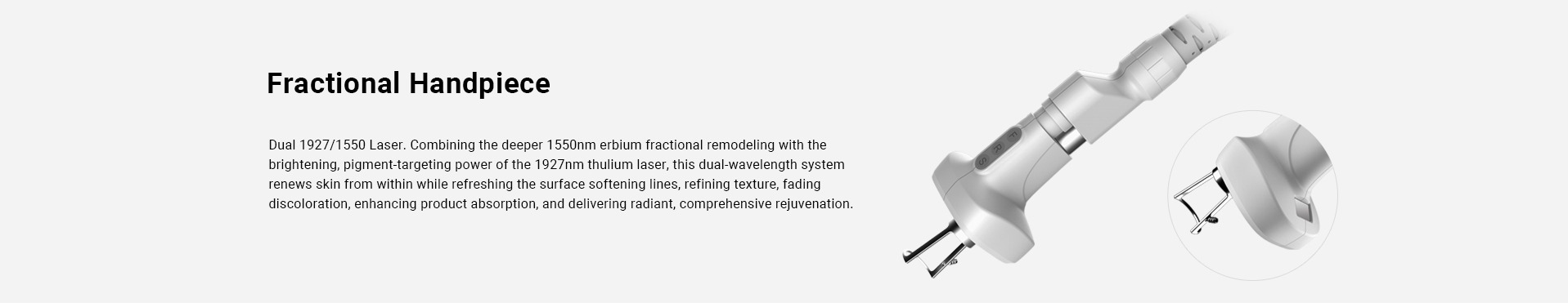

Fractional Handpiece with OLED Screen;
Multiple Shape Patterns Selectable and Hand-drawing Function
Multiple scanning patterns can be selected according to the treatment area and tissue. Choosing accurate energy and position location for different treatment tissues helps to effectively achieve skin resurfacing.
The unique hand-drawing function can provide you with all kinds of graphics you want, which can be better used for some special treatment areas, especially the corners of the eyes, both ears, and so on.
● Makes selecting specific treatment areas easy; irregular areas can also be configured.
● Compact handpiece design for comfortable, easy treatments.
● Touch the screen to easily adjust treatment settings for optimal results.
● Stable energy output ensures a great result.
● Energy can penetrate into the dermis, achieving better skin regeneration effects
● The lattice distribution of the light beam causes minimal thermal damage to the skin, ensuring a short recovery period for treatment.

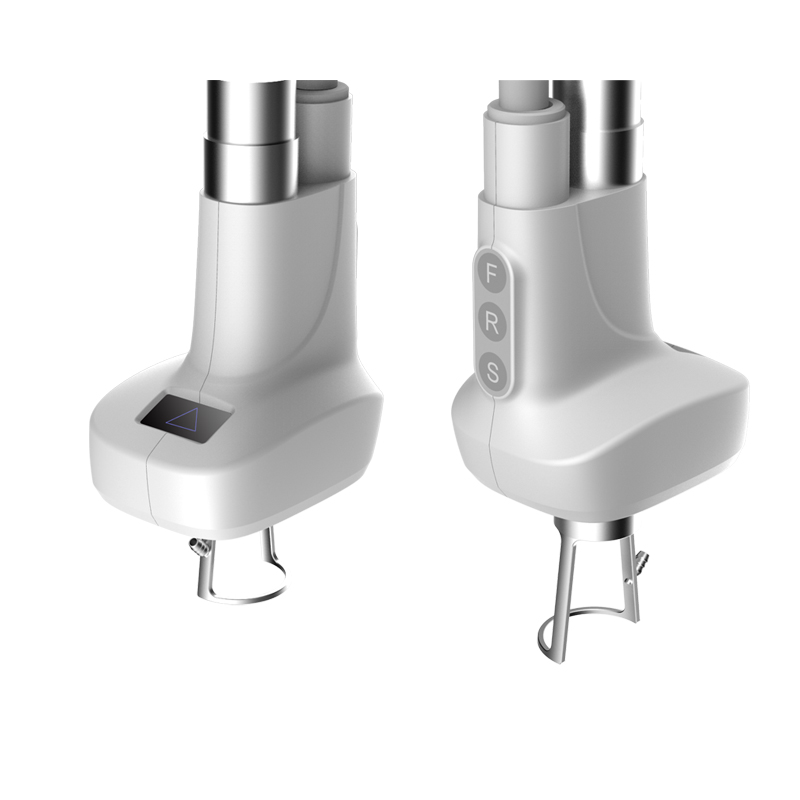

● Handpiece with OLED screen
● RF ID management control design provides different business operation modes.
| ● Skin rejuvenation | ● Stretch mark improvement |
| ● Skin resurfacing | ● Acne scar correction |
| ● Wrinkle reduction | ● Hair growth stimulation |
| ● Skin toning and tightening |
| Wavelength | 1550+1927nm | 1927nm | |
| Laser power | 15+15W | 15W | |
| Laser output | 1~120mJ/dot (1550nm) |
1~100mJ/dot (1927nm) | 1~100mJ/dot (1927nm) |
| Pulse width | 1~20ms (1550nm) |
0.4~10ms (1927nm) |
0.4~10ms (1927nm) |
| Density | 9~225 PPA/cm² (13 level) | ||
| Scan area | Max. 20*20mm | ||
| Operate mode | Array, Random | ||
| Operate interface | 15.6" True color touch screen | ||
| Cooling system | Advanced air cooling system * | ||
| Power supply | AC 100~240V, 50/60Hz | ||
| Dimension | 46*44*104cm (LWH) | ||
| Weight | 233: 35Kgs | ||
* Optional: Air cooling system
